Orbit

Coster Group  /  Products  /  Actuators & Spray caps  /  Orbit

Orbit

Spray

For press-down valves with stem Ø 3.9

  • For valves with stem Ø 3.9
  • Two-piece spray cap with universal design, making it the ideal choice for a variety of applications.
    Available for:
  • Tinplate cans: 45 mm, 49 mm and 52 mm diameter
  • Transfer alu-cans: 45 mm, 50 mm and 53 mm diameter

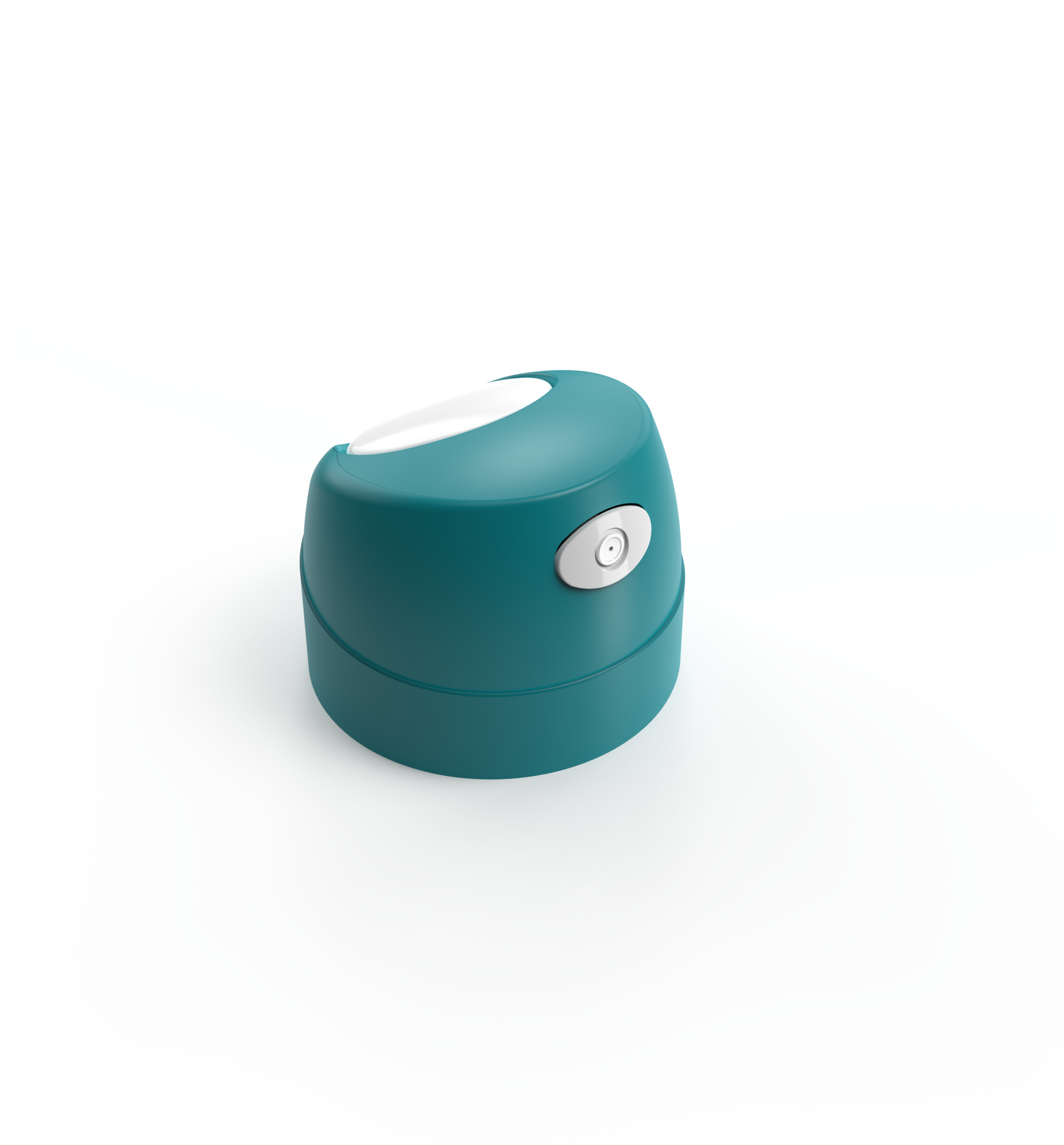

V21.85, V21.86, V21.92

Spray cap for necked-in tin plate cans and transfer alu-cans





V21.171: Ø45 PCR version

V21.184: Ø49 PCR version

V21.170: Ø52 PCR version

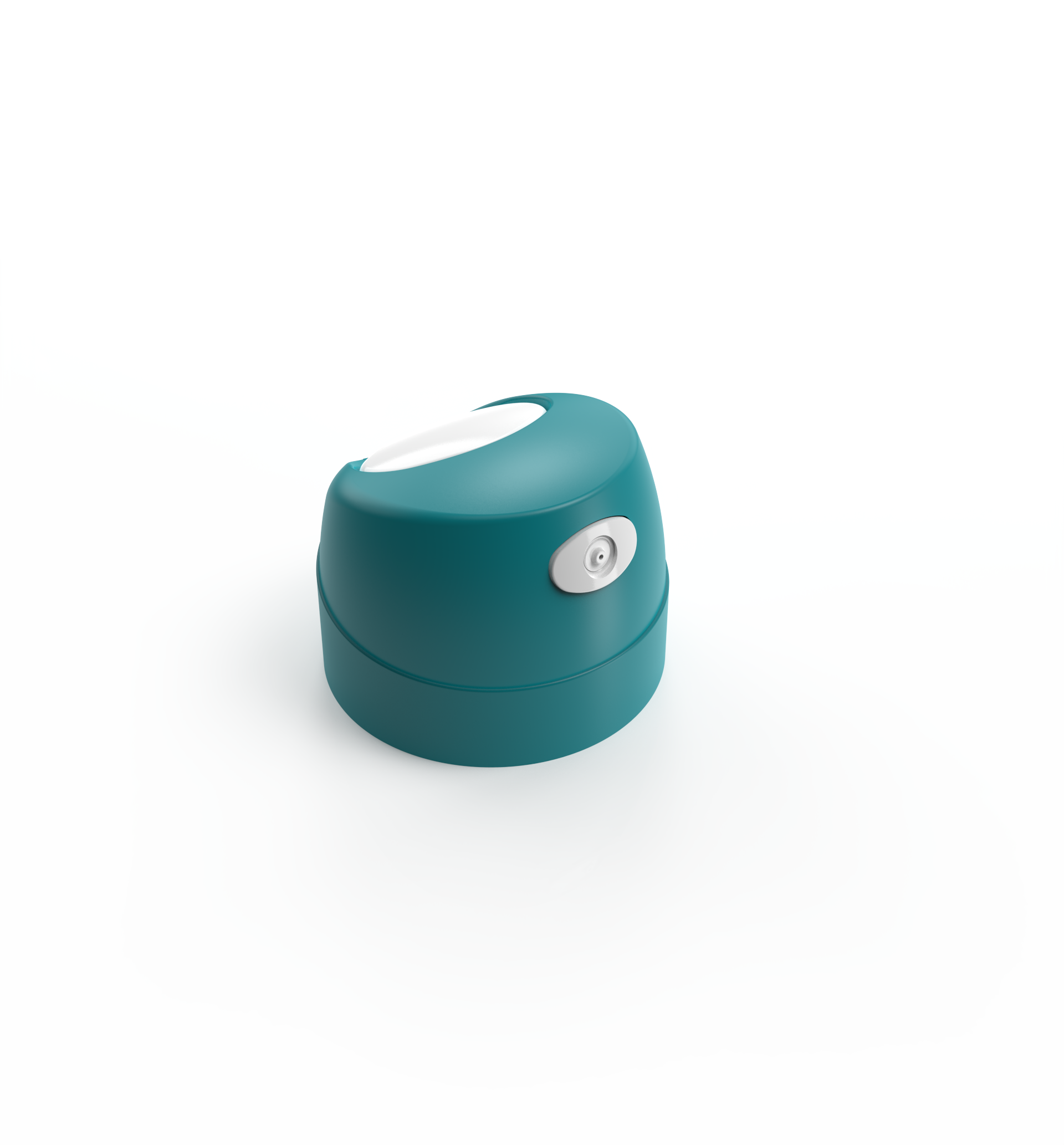

V21.93, V21.95, V21.96

Anti-perspirant spray cap with directional insert for necked-in tin plate cans and transfer alu-cans.





V21.173: Ø45 PCR version

V21.185: Ø49 PCR version

V21.172: Ø52 PCR version

Features

COSTER SUSTAINABLE SOLUTIONS

ORBIT PCR



Orbit PCR version is suitable for personal care and cosmetic products thanks to the two pieces design with separate spray channel.



Orbit PCR version keeps all the features of the standard Orbit spray cap and the same manufacturing tooling.



Standard colours: grey and ivory.
Other colours available on request.

VISIBLE TAMPER-TAG

To meet customer demand, Orbit spray cap is fitted with a newly-developed and visible tamper-tag (guarantee seal) on the rear side of the finger pad.

UNLIMITED POSSIBILITIES OF COLOUR COMBINATIONS

The spray-channel presents an oval finger pad, together with an oval spray nozzle front: the name Orbit arises from these oval designs.
The separate arrangement of spray-channel finger pad and outer cap offers unlimited possibilities to combine different colours.
To satisfy the increased demand for transparent and trans-lucent colour variations and to ensure transparency, the core of the mould is polished.
